Trigger Power Automate Flow using JavaScript – Bi-Directional

Hi All,

This blog will be a continuation of my previous blog –  Trigger Power Automate Flow using JavaScript – Uni Directional

Now, feedback is essential when sending a request to determine whether it was successfully performed or failed somewhere.

You can accomplish this by forwarding a response back from where the flow was invoked.

I’ll use the same situation as in my previous blog, where I send a notification by greeting a person’s name if exists, or else I will greet a friend.

Check out my previous blog to learn how to build your Flow and JavaScript.

Steps to pass the response back within Flow​

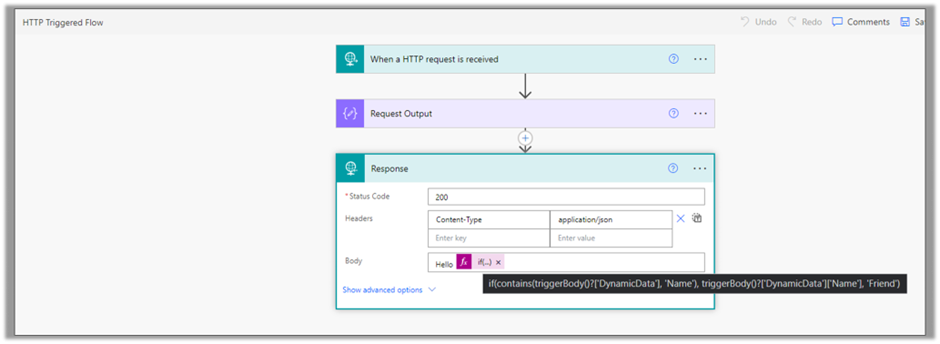

Step 1: Add a response that will be sent back from where the Flow was invoked.

Quick Tip: I am checking if ‘Name’ is present in my dynamic content. If yes, then greet the person else greet a Friend

Formula: if(contains(triggerBody()?[‘DynamicData’], ‘Name’), triggerBody()?[‘DynamicData’][‘Name’], ‘Friend’)

Steps to add into the JavaScript

Step 1: Initially we created JS to trigger the flow, now we will add the code snippet to accept the response from Flow.

Add the following Code:

var TriggerFlow =

{

    Main: () =>

    {

        var formContext = executionContext.getFormContext();

        //Strict Defined Parameters

        var RecordID = formContext.data.entity.getId().replace("{", "").replace("}", "");

        var EntityName = formContext.data.entity.getEntityName();

        //Dynamic Parameter - Sample Data

        var DynamicValues = {Name: "Ethan", Operation: "One Way Power Automate trigger"};

        //Find Plural Logical Name of the Entity and Call Flow

        Xrm.Utility.getEntityMetadata(EntityName, "").then(

            function (result)

            {

                TriggerFlow.CallFlow({logicalEntityName: result.EntitySetName, CurrentRecord: RecordID, DynamicData: DynamicValues});

            },

            function (error)

            {

                console.log(error);

            }

        );

    },

    CallFlow: ({logicalEntityName, CurrentRecord, DynamicData}) =>

    {

        var flowUrl = "https://prod-133.westus.logic.azure.com:443/workflows/796d8796a139409e844e8f1001493567/triggers/manual/paths/invoke?api-version=2016-06-01&sp=%2Ftriggers%2Fmanual%2Frun&sv=1.0&sig=XtYrETcQW07SX5EIuxtQDv7lQ8mPNyDpDZ9O7tGmqc8";

        var inputdata = JSON.stringify({

            "EntityName": logicalEntityName,

            "RecordID": CurrentRecord,

            "DynamicData": DynamicData

        });

        var req = new XMLHttpRequest();

        req.open("POST", flowUrl, true);

        req.setRequestHeader('Content-Type', 'application/json');

        req.send(inputdata);

        ////Response

        req.onreadystatechange = function () {

            if (this.readyState === 4) {

                req.onreadystatechange = null;

                if (this.status === 200)

                {

                    var result = this.response;

                    alert("" + result);

                }

                else if(this.status === 400)

                {

                    alert(this.statusText);

                    var result = this.response;

                    alert("Error" + result);

                }

            }

        };  

    }

}

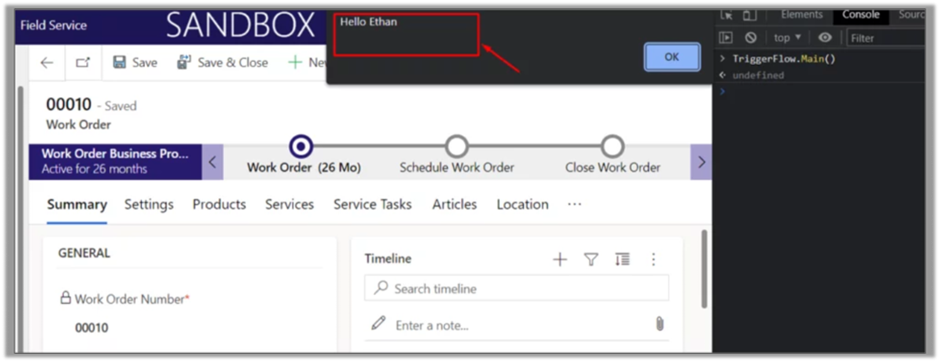

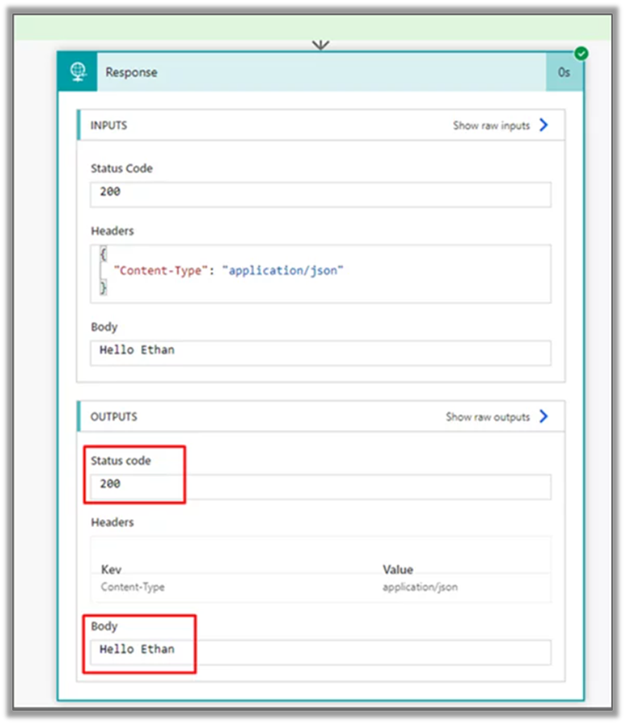

Step 2: Trigger the JS and watch the output I get as Alert (I have used the console page to trigger my JS for example purposes)

Hope this helps in achieving a response from the Power Automate Flow!
